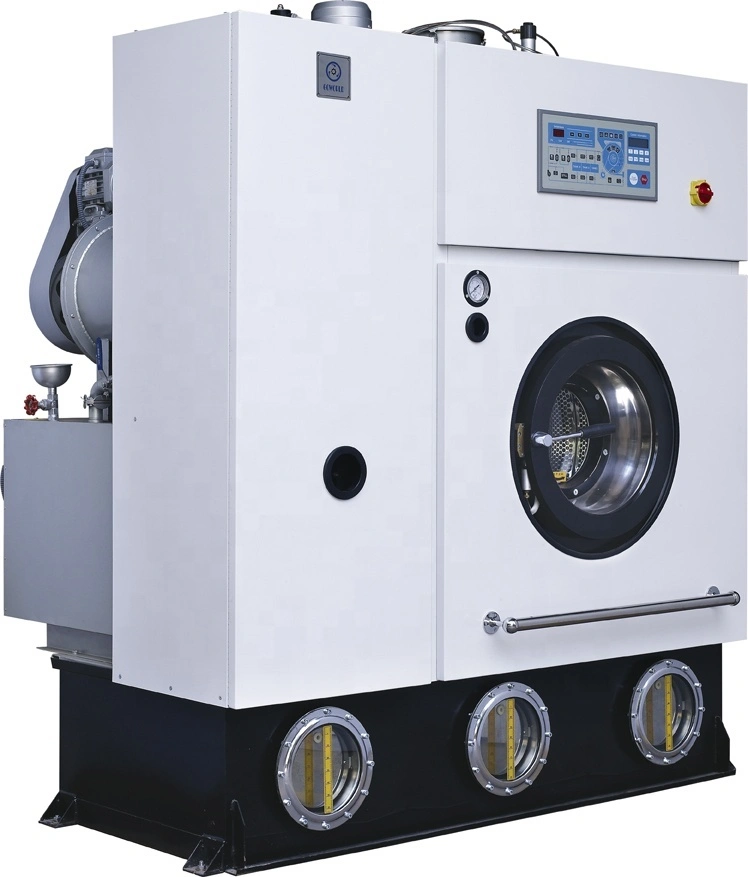

the peer lead 10kg steam heating dry cleaning machine(washer,dryer,flatwork ironer)
parameters :
|
Unit | TC3020S/E | |||
Item | |||||
Washing Capacity | kg | 10 | |||
Cylinder Capacity | L | 160 | |||
Washing Rotation Speed | r/min | 34 | |||
Extract Speed | r/min | 370 | |||
Base Tank Capacity | #1 | L | 112 | ||
#2 | L | 127 | |||
#3 | L | 112 | |||
Still Tank Capacity | L | 150 | |||
Filter Area | M2 | 2.8 | |||
Total Motor Power | KW | 4 | |||
Electric | Still | KW | 6 | ||
Heated Power | Drying | KW | 6.75 | ||
Maximum Steam Consumption | kg/h | 32 | |||
Maximum Water Consumption | kg/h | 450 | |||
Machine Dimension | Height | mm | 2040 | ||
Width | mm | 1690 | |||
Thickness | mm | 1150 | |||
Weight | kg | 850 |
Remark
1.Steam pressure 4-6 kg/cm2 3.Power Source 380V/3PH/50Hz
2.Cooling Water Pressure 1.5-2 kg/cm2 4.S-Steam type E-Electric type
10kg steam heating dry cleaning machine(washer,dryer,flatwork ironer) :
1. Stainless Steel Construction
Main parts like basket, outer drum, recovery duct, distillation tank, condenser, water separator, filter housing, loading door, etc… are made of high quality stainless steel, while strong base tank is perfectly zinc-galvanized steel and proven last as long as stainless steel.
2. Color Touch Screen Computer
Advanced programmable color touch screen computer provide maximum flexibility while ensuring
safety. Up to 70 programs including automatic maintenance programs is luxurious for most dry
cleaners. Easily upgradable with USB memory stick for different setting of different solvent.
3. Reliable Seals and Gaskets
All seals and gasket in contact with solvent is made of Viton proven last long for dry cleaning machines.
4. Premium Quality
Highest quality designed for American, European and Japanese market.
5. Environmental Friendly Enclosed System
Fully enclosed with high capacity refrigeration system effectively recover maximum Perchloroethylene
solvent, keep the operation cost at minimal. Special basket perforation design directs the heated air pass thru the garments to dry efficiently and shorten cycle time, saving time and energy. Button trap dry up there sidues in every drying cycle make it easy to clean. Ecological nylon filter can be cleaned by spinning motor automatically.
6. Deluxe Standard Specification
Secondary carbon absorber system to reduce PPM, two nylon spin filters plus one carbon cartridge filter, frequency inverter drive for variable speed setting, 3 automatic self-cleaning tanks for more flexibility, electronic dry controller to monitor solvent recovery, refrigeration solvent cooling to clean temperature sensitive fabrics, sludge pump system to clean the distillation tank automatically, safety base trough to protect solvent leaking to floor, all these might be options for many comparable machines in the market. Only dosing pump is optional.
Photoes:
Our product line-up include a wide range of Industrial Washing and Drying Machines as follows:
Industrial Washing Machines |
Washer Extractors |
Tumble Driers |
Perc Dry Cleaning Machines |
Auto Ironing/Calendering Machines |
Auto Folding Machines |
Clothes Packing Machines |
Stain Removing Machines |
Clothes Conveyor |
Form Finisher |
1. Over 20 years of professional manufacturing experiences.
2. Short shipping delivery to destination
3. With competitive price, stable quality and dedicated service.
4. We have successfully passed a series of strict audits such as CE, ISO 9001, etc.
5. Our washers, dryers and ironers are sold mostly to Russia,India,Malaysia, Asia and other markets.
