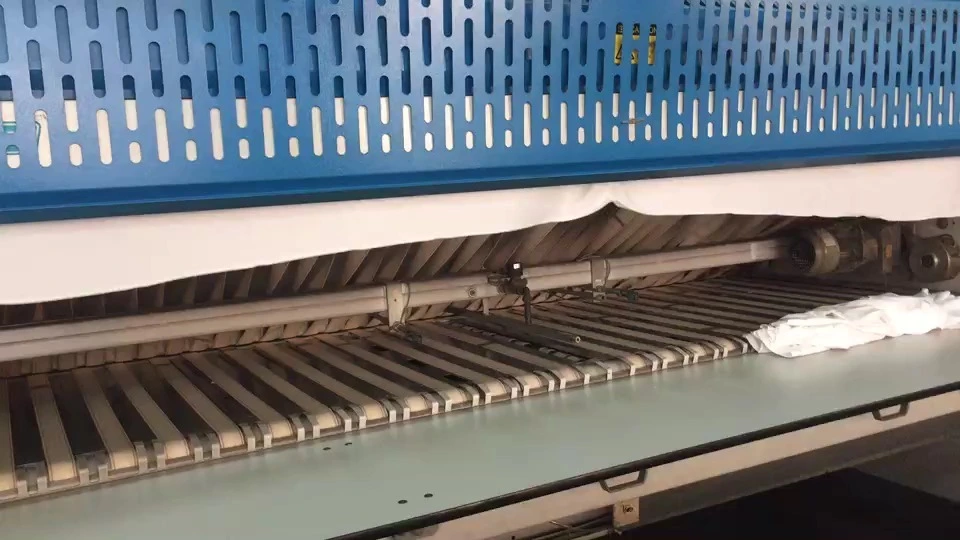

Automatic Bedsheet Folding Machine
Automatic Bedsheet Folding Machine
Product Description
1、Fully Auto computer control.
2、Error self-diagnosis and protection
3. Folding speed adjusted within 40m/min.
4. Four-lane function.
5. Air blow and mechanical knife fold.
6. Max 5 folds with 32 layers folding.
7.Speed control synchronized with iron machine,Platform can be lifted to link with ironing machine
8、Infrared ray detecting and counting, two sets of static elimination devices.
Product Specifications
| Model | Unit | Z3200-V | |
| Max.Folding Width | Mm | 3200 | |
| Fold Speed | m/Min | 30 | |
| Power | v/p/Hz | 380/3/50 | |
| Power | Kw/h | 2 | |
| Compressed Air Consumption | l/Min | 80 | |
| Motor Power | Kw | 2.6 | |
| External Power Wire | Mm2 | 4 | |
| Air Compressor Output | m3/Min | 0.3 | |
| Net Weight | Kg | 1500 | |
| External Size | Length | mm | 4500 |
| Width | mm | 2950 | |
| Height | mm | 1990 | |
Product Details
NO.1/ bedsheet folding machine in textile industries safety switch
NO.2/ bedsheet folding machine in medical engineering cloth outlet platform
NO.3/ bedsheet folding machine in medical engineering folding channel
NO.4/ bedsheet folding machine in laundry factory Intelligent infrared testing system
NO.5/ 202411 folding machine
NO.6/ Automatic bedsheet folding machine (1)
NO.7/ Automatic bedsheet folding machine (2)
NO.8/ Bed sheet automatic folding machine in medical engineering,textile industries,laundry factory.
