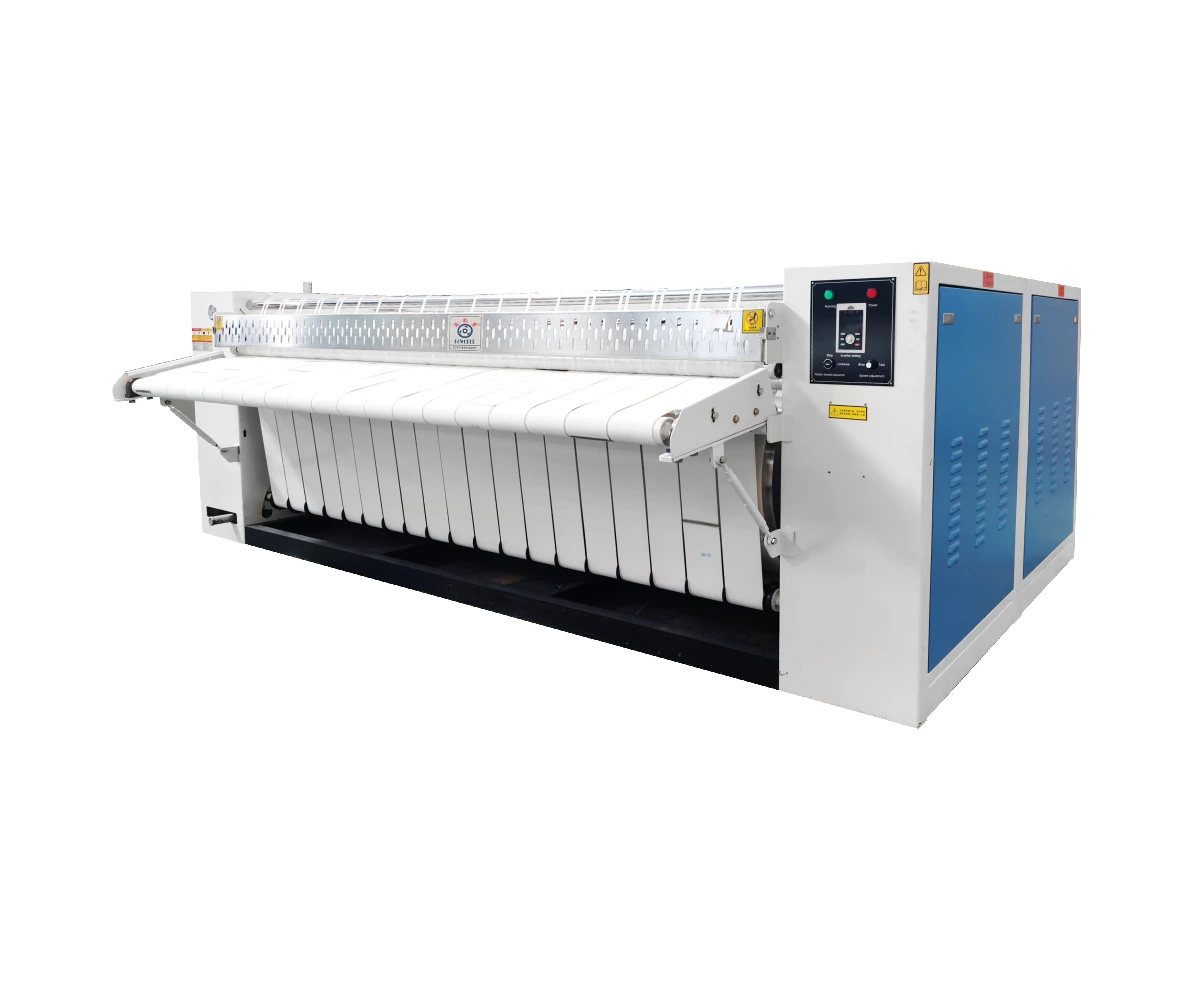

Roller Style Flat Ironer - Electric/Steam Heating
Roller Style Flat Ironer - Electric/Steam Heating
Product Description
1.Advanced inverter to control speed, with safe protect system.
2.Adopt roller heating,high temperature steam union,strong conveyor and chain to drive.
3. Stainless steel roller, full closed frame structure to ensure heating efficiency.
4. Meet the different material ironing need.
Product Specifications
| Model | Unit | YZ(D)KI-3000 | YZ(D)KII-3000 | YZ(D)KI-3300 | YZ(D)KII-3300 | |
| Roll Qty | piece | 1 | 2 | 1 | 2 | |
| Ironing speed | M/min | 0-7 | 0-19.9 | 0-7 | 0-15 | |
| Steam pressure | mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | |
| Steam temperature | ℃ | 160 | 160 | 160 | 160 | |
| Electric heat power | KW | 36 | 72 | 36 | 72 | |
| Motor power |
KW |
0.75 | 1.5 | 0.75 | 2.2 | |
| Power |
V/p/hz |
380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | |
| Weight | kg | 2000 | 2700 | 2000 | 2900 | |
| External Size | Length | mm | 4040 | 4050 | 4060 | 4360 |
| Width | mm | 1350 | 2300 | 1700 | 2700 | |
| Height | mm | 1250 | 1350 | 1350 | 1350 | |
Product Details
NO.1/ Roller style bed sheet flat ironer safe protect system
NO.2/ Roller style bed sheet flat ironer heavy internal belt
NO.3/ Roller style bed sheet flat ironer Inverter controller
NO.4/ roller flat ironer full closed frame structure
NO.5/ Roller style bed sheet flat ironer hard steel
NO.6/ Roller style bed sheet flat ironer with safe guard
NO.7/ roller style flat ironer for bedsheet ironing in hotel,hospital,textile industries
NO.8/ roller style flatwork ironer machine.
