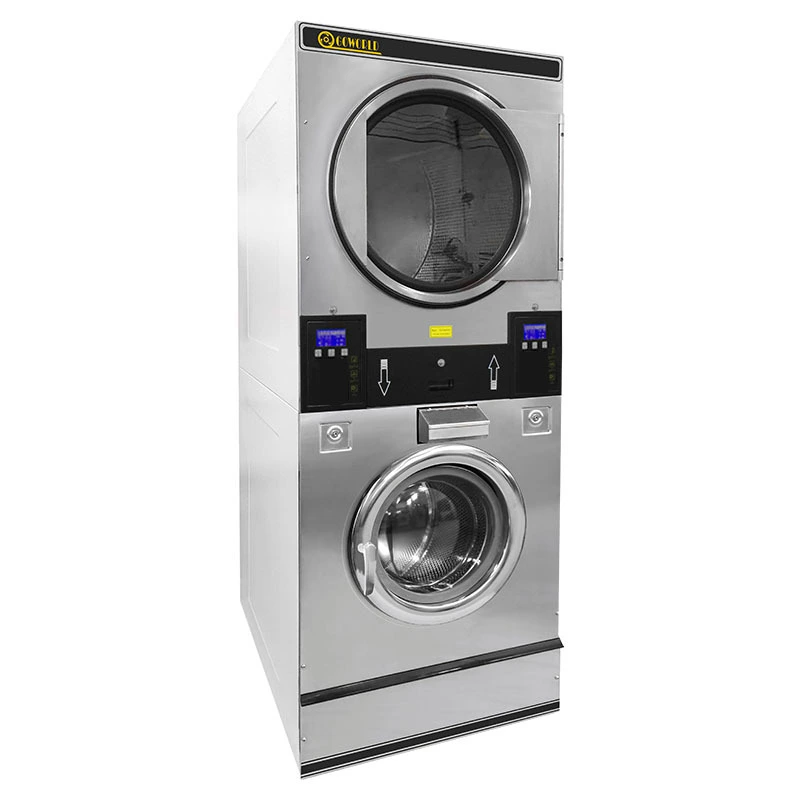

Commercial Stack Washer Dryer
Product Description
1. The inner washing drum is designed with strong bearing structure to meet the high quality of washing and extracting need.
2. About dryer, four heating order models for choice: electric heating ,steam heating ,LPG gas heating ,natural gas heating
3. About the washer,there are cold water and hot water inlets .There are electric heating model and steam heating model for order.
4.Washing and drying work can be done at the upper and nether machines together .Improve the working efficiency ,save the space and labor.
5.Computer control, with automatic programs and manual programs for choice. The working condition can be displayed on the screen directly.
Product Specifications
Our specialists can help you find the perfect seating for your home.
Model | Unit | WD10Q | WD12Q | WD15Q | WD25Q | |
Capacity | kg | 10.5+10.5 | 12+12 | 15+15 | 25+25 | |
Washer Drum size | mm | Φ580x400 | Φ640x375 | Φ640x470 | Φ740x580 | |
Washing speed | r/min | 47 | 45 | 45 | 38 | |
Dehydrating Speed | r/min | 800 | 750 | 750 | 700 | |
Washer Motor Power | kw | 1.5(1P/3P) | 1.5(3P) 1.8(1P) | 2.2(1P/3P) | 3.0(3P) 2.2(1P) | |
Heat power | kw | (E)9 | (E)12 | (E)15 | (E)21 | |
Dryer Drum Size | mm | Φ640x640 | Φ760x530 | Φ760x680 | Φ915x770 | |
Dryer Heat Power | kw | (E)9 | (E)12 | (E)15 | (E)18 | |
Dryer Motor Power | kw | 0.74 | 0.74 | 0.92 | 1.85 | |
LPG Consumption | kg/h | (Q)0.35 | (Q)0.41 | (Q)0.5 | (Q)0.75 | |
Natural Gas Consumption | m3/h | (Q)0.45 | (Q)0.52 | (Q)0.64 | (Q)0.96 | |
Weight | kg | 425 | 480 | 515 | 830 | |
External Size | Length | mm | 750 | 820 | 820 | 970 |
Width | mm | 1220 | 1190 | 1270 | 1380 | |
Height | mm | 1860 | 1993 | 1993 | 2365 | |
Remark |
1WD- washer dryer WD-Card washer dryer 2. E- Electric heating Q-Gas heating |
