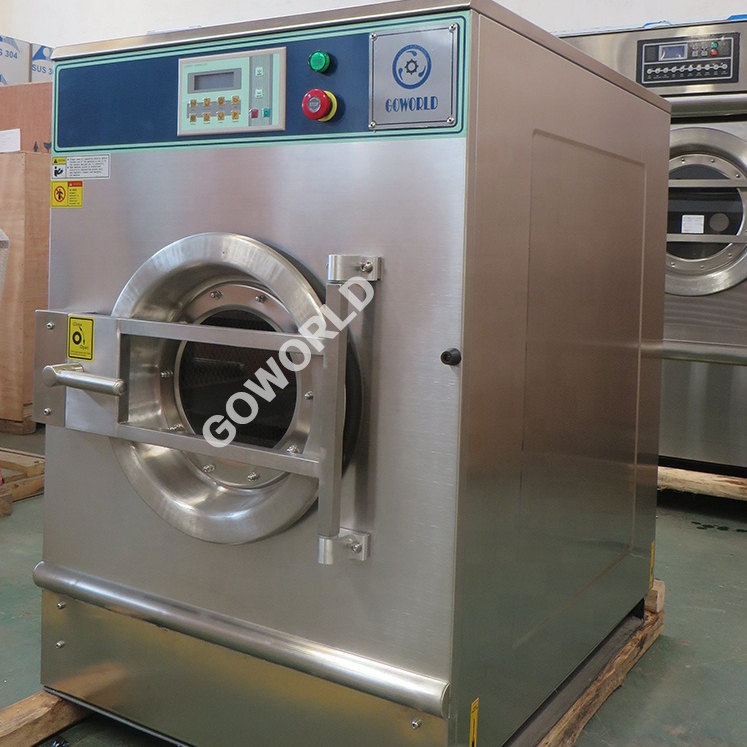

Steam heating hotel washer extractor,hotel washing machine
1. High quality inverter system, easily realize washing and dehydration frequency stepless adjusting.
2. Fixed support for long-distance transportation, avoid shaking damage during transit.
3. Automatic testing to track down the situation in time .CE approval.
4. Hard mounted type. Easy to install according to our foundation diagram.
5. High quality stainless steel material is for anti-rust and long-term service .
6. Built-out bearing lubrication, simple operation, convenient maintenance.
Products:Hotel Washer Extractor Parameters:
Model | XGQ-50FB(FBD) | XGQ-35FB(FBD) | XGQ-25FB(FBD) | XGQ-15FB(FBD) | ||
Capacity | kg | 50 | 35 | 25 | 15 | |
Drum size(Φ×L) | mm | Φ955×700 | Φ955×490 | Φ750×540 | Φ750×340 | |
Washing speed | r/min | 36 | 36 | 38 | 38 | |
Extract speed | r/min | 680 | 680 | 750 | 750 | |
Motor power/ Heat power | kw | 7.5/36 | 5.5/27 | 3/21 | 2.2/15 | |
Cycle | Electricity Consumption | kw/h | 2.1/12 | 1.8/9 | 1.5/5 | 1/4 |
Water Consumption | m3 | 0.6 | 0.5 | 0.4 | 0.35 | |
Steam Consumption | kg/time | 40 | 30 | 20 | 15 | |
Weight | kg | 1100 | 960 | 550 | 500 | |
External Size | Length | mm | 1200 | 1200 | 990 | 990 |
Width | mm | 1480 | 1310 | 1240 | 1030 | |
Height | mm | 1700 | 1700 | 1360 | 1320 |
